Separating, trimming & finishing Our separating discs attain a cutting speed of up to 300km/h (186,4 miles per h). They separate powerfully, safety and highly precisely at high speed. To achieve this type of high performance, a careful combination of selected raw materials and a high degree of dimensional accuracy is decisive. In addition to the very high‐quality abraisives, such as the finely coordinated diamond particle sizes, as well as aluminum oxide with a very high degree of purity, the binding agents are also consistently tailored to their respective area of application. All Dynex separating and trimming discs, including the ultra‐thin versions, are reinforced with double glass‐fiber. The reinforcement is a component of the disc core and is fused completely with the carrier material. This means for you: outstanding durability, flexibility and reliability. |
![]() |
Diamond coated separating disc for cutting out dies from |
Diameter | 30 mm(1.18 inch) | 45 mm(1.77 inch) | ||
Thickness | 0.3 mm(0.01 inch) | 0.35(0.01 inch) | ||
Shaft diameter | 2.35 mm(0.09 inch) | 2.35 mm(0.09 inch) | ||
Max. rpm 1/min. | 10.000 | 10.000 |
![]() |
Extra-thin, special separating discs for very fine separating work on porcelain dentures. DescriptionSeparating discs for porcelain, 50 pieces |
Diameter | 22 mm(0.87 inch) | |||
Thickness | 0.2 mm(0.01 inch) | |||
Max. rpm 1/min. | 20.000 |

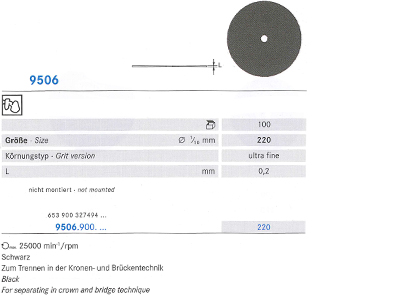

![]() | Standard separating discsHigh durability for heavy use. For separating sprues from chrome cobalt alloys. Stable. Especially suitable for processing chrome cobalt frames. Very powerful. For grinding sprues and finishing chrome cobalt alloys. DescriptionSeparating discs 37 mm, 100 pcs. |
Max. rpm 1/min. | 25.000 |
![]() |
Paste for high-lustre polish on all prosthetic acrylics.• Hard polishing paste for mirror-like surface. • Long-lasting. • Fine grained consistency. • Optimum paste application for brushes or buffs DescriptionUniversal polishing paste, beige, 6 X approx. 200 g |
![]() DescriptionSDynex 0.3mm, 20 pieces Dynex 0.5mm, 20 pieces Dynex 1mm, 20 pieces |

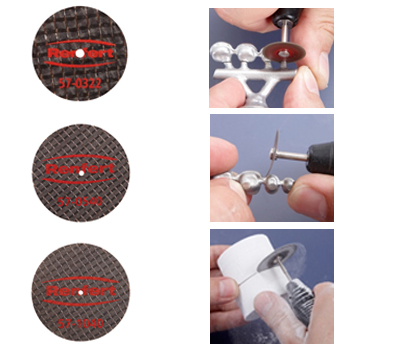

Extremely robust separating discs with double, cross linked, high-tec fibreglass reinforcement. Suitable for cutting and grinding all conventional alloys. These separating discs provide maximum cutting performance and minimum wear. A new manufacturing process together with a special binding material, guarantee great strength and low heat generation even at extremely high rotational speeds.
0,3 x 22 mm – The highly flexible one• For all precious and NP alloys in C+B technique • Very flexible and highly efficient even with rotational speeds up to 50.000 rpm • Gentle to materials thanks to minimal heat generation • Almost indestructible, even under extreme pressure (e.q.when jammed) 0,5 x 40 mm – The fast one• Superfast cutting of non precious or chrome cobalt alloys • Highest cutting power with minimum wear • Need only little pressure • Low heat generation 1,0 x 40mm – The strong one• For all chrome cobalt and non precious alloys • Cutting and grinding sprues in one step • Extremely low wear with maximum cutting power • For use in handpieces and in high-speed grinders (e.q.Demco) |
Diameter | 57-0322: 22 mm (087 inch) 57-xx40: 40 mm (1.57 inch) |
|||
Thickness | 57-0322: 0.3mm (0.01 inch) 57-0540: 0.5 mm (0.02 inch) 57-1040: 1.0 mm (0.04 inch) |
|||
Max. rpm 1/min. | 57-0322: 50.000 57-xx40: 38.000 |
![]() |
Highly flexible separating disc for porcelain with coating on |
Diameter | 22 mm(0.87 inch) | |||
Thickness | 0.15mm (0.01 inch) | |||
Shaft diameter | 2.35mm (0.09 inch) | |||
Max. rpm 1/min. | 15.000 |
