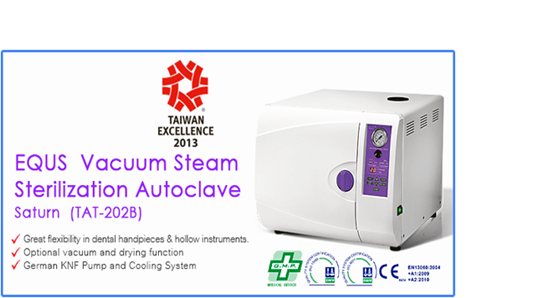

TAT-202B; Microcomputer
controlled Vacuum type Steam Sterilizer

Safety device:

- Overheating protector
- Pressure release valve
- Door open sensor with indicator light
- Automatic pressure lock
- Emergency stop and release valve for water and steam
- Water sensor and indicator light to alarm lower abnormal water
- LED display to alert user error message

High efficient

1. Optional vacuum and drying function adapt to different instruments. (Air expulsion is needless for solid instruments)
2. Use high quality components to ensure longer life of operation.

Extra Dry :

Installed with German KNF Pump and Cooling System. Less than 0.2% vapor residual. (Comply with CE Standards.)


Model Number : TAT-202B24
Liter : 24L
Overall Dimensions : 560(W) x 665(D) x 400(H) mm
Chamber Dimensions : Φ260 x 455mm
Weight : 53kgs
Pressure Gauge : 2.5 kg/cm²
Power Consumption : 230Vac / 2000W
Sterilization Time : 121℃ 15 ~ 30 min. and 134℃ 4 ~ 30 min.
Sterilization programs : 2 preset + digital adjustable timer with 14 User programmable cycles
Independent dry system : time setting range from 0 ~ 99 mins
Reservoir Capacity : 5000c.c.
Display Specification : pressure and temperature gauge, process indicator light, safety indicator light (low water / door open)
Standard Accessory : stainless steel box x1
Reservoir Capacity : 5000c.c.
Voltage : AC 230V±10% 50HZ/60HZ,8A
Standard Accessory : Stainless steel box x1
Optional Accessory : stainless steel rack x1, stainless steel tray x4, stainless steel hand tool x1
